SCANFLEX ® CTS-Power - 300/500 V
Application
SCANFLEX® CTS-Power is utilized for control, regulation, and power supply in CTS and BMS systems. This cable is halogen-free, flame-retardant, low-smoke, and UV-resistant, making it suitable for both indoor and outdoor use.

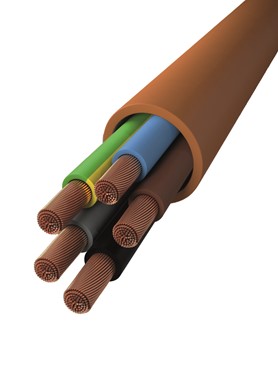

Construction
Conductor
Stranded electrolytic copper, class 5
Insulation
HFFR-compound
Conductor color
HD308
Filling sheath
PES tape
Outer sheath
HFFR-compound, brown RAL 8023
Technical data
Working temperature
Flexible: -5 °C to +70 °C
Fixed: -30 °C to +70 °C
Rated voltage
300/500 V
Test voltage
2500 V
Bend radius
Flexible: 15 × cable diameter
Fixed: 7.5 × cable diameter
CPR classification:
B2ca-s1a,d1,a1
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60332-1-2, EN 60332-3-24, IEC 60754-2, IEC 61034, CE, RoHS
Bending radius 7,5 x cable diameter
Fire retardant acc. to IEC 60332-3-24 (CAT-C)
Flame retardant acc. to IEC 60332-1
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +70° C
Min. working temperature -30° C
UV-resistant
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 176015003G | 5704403218608 | B2ca-s1a,d1,a1 | 3G1,5 | 15 | D./Cut | 7,0 | 78 |
| 176015004G | 5704403218691 | B2ca-s1a,d1,a1 | 4G1,5 | 15 | D./Cut | 7,6 | 99 |
| 176025003G | 5704403218684 | B2ca-s1a,d1,a1 | 3G2,5 | 20 | D./Cut | 8,3 | 72 |
| 176025004G | 5704403218707 | B2ca-s1a,d1,a1 | 4G2,5 | 20 | D./Cut | 9,1 | 148 |
| 176025005G | 5704403218714 | B2ca-s1a,d1,a1 | 5G2,5 | 20 | D./Cut | 10,2 | 189 |
| * The values can have small deviations | |||||||
