SCANFIBER ® Marine CT U-D(ZN)BH FS ZB

Application

Non-metallic, light and flexible marine cable approved by Germanischer Lloyd and Det Norske Veritas (DNV) for fixed installation on ships and offshore facilities. for use in vital communication and emergency systems that must be operational during fire. The cable has a design that ensures operation for 1½ hours in fires up to 750 °C. With non-metallic rodent protection and for a high tensile force of 2500 N. For fixed installation indoors and outdoors, in cable ducts and pipes.

Construction

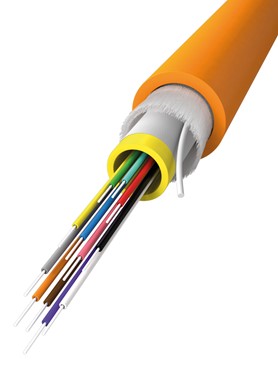

Jelly filled loose tube, outer diameter 3.5 mm with 2-12 optical fibres and outer diameter 4.0 mm with 14-24 optical fibres.

Tube colour: yellow (E9/125) or green (G50/125)
Fiber colour: Acc. to IEC 60304

Outer sheath

FRNC, orange.
Wall thickness approx. 1.2 mm.
With two opposed ripcords under the jacket.

Inner fire barrier: Fire protection tape made of woven glass
Outer fire barrier: Multifunctional E-glass yarns, wrapped in two layers (left and right spin), as strain relief element and non-metallic rodent protection.

Technical data

Working temperature

Transport and storage:  -40°C to +70°C
Installation: -5°C to +50°C
In use: -40°C to +60°C

Bend radius

Fixed: 15 x cable diameter
During installation: 20 x cable diameter

Technical comments

Max. tensile force, ST: 2500 N
Max. crush resistance, LT: 3000 N/dm

CPR classification:

Dca-s2, d2, a1

Please request for DoP at dop@scankab.dk

Approvals

EN 50575, IEC 60304, IEC 60794-1-2 E11A, IEC 60794-1-2 E6, IEC 60794-1-2 E1, IEC 60794-1-2 E3, IEC 60332-1-2, IEC 60332-3-22 Cat. A, IEC 61034, IEC 60754-1, IEC 60754-2, IEC 60331-11 / IEC 60331-25, EN 13501-6, IEC 60794-2, DNV-GL, CE, RoHS
Bending radius 20 x cable diameter
Can lay in tubes
Fire retardant acc. to IEC 60332-3-22 (CAT-A)
Flame retardant acc. to IEC 60332-1
For use on ships
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +60° C
Min. working temperature -40° C
Oil resistant
Resistance towards oil and chemicals
Rodent protected
UV-resistant
Water resistant
SKU EAN CPR Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
8415612OS21165 5704403201570 Dca-s2,d2,a1 12xOS2 (G652D) - D./Cut 10,3 127
8415624OS21186 5704403202805 Dca-s2,d2,a1 24xOS2 (G652D) - D./Cut 10,8 134
8415612OM31166 5704403201587 Dca-s2,d2,a1 12xOM3 - D./Cut 10,3 127
8415624OM31187 5704403202812 Dca-s2,d2,a1 24xOM3 - D./Cut 10,8 134
8415612OM41167 5704403201594 Dca-s2,d2,a1 12xOM4 - D./Cut 10,3 127
8415624OM41188 5704403202829 Dca-s2,d2,a1 24xOM4 - D./Cut 10,8 134
* The values can have small deviations
