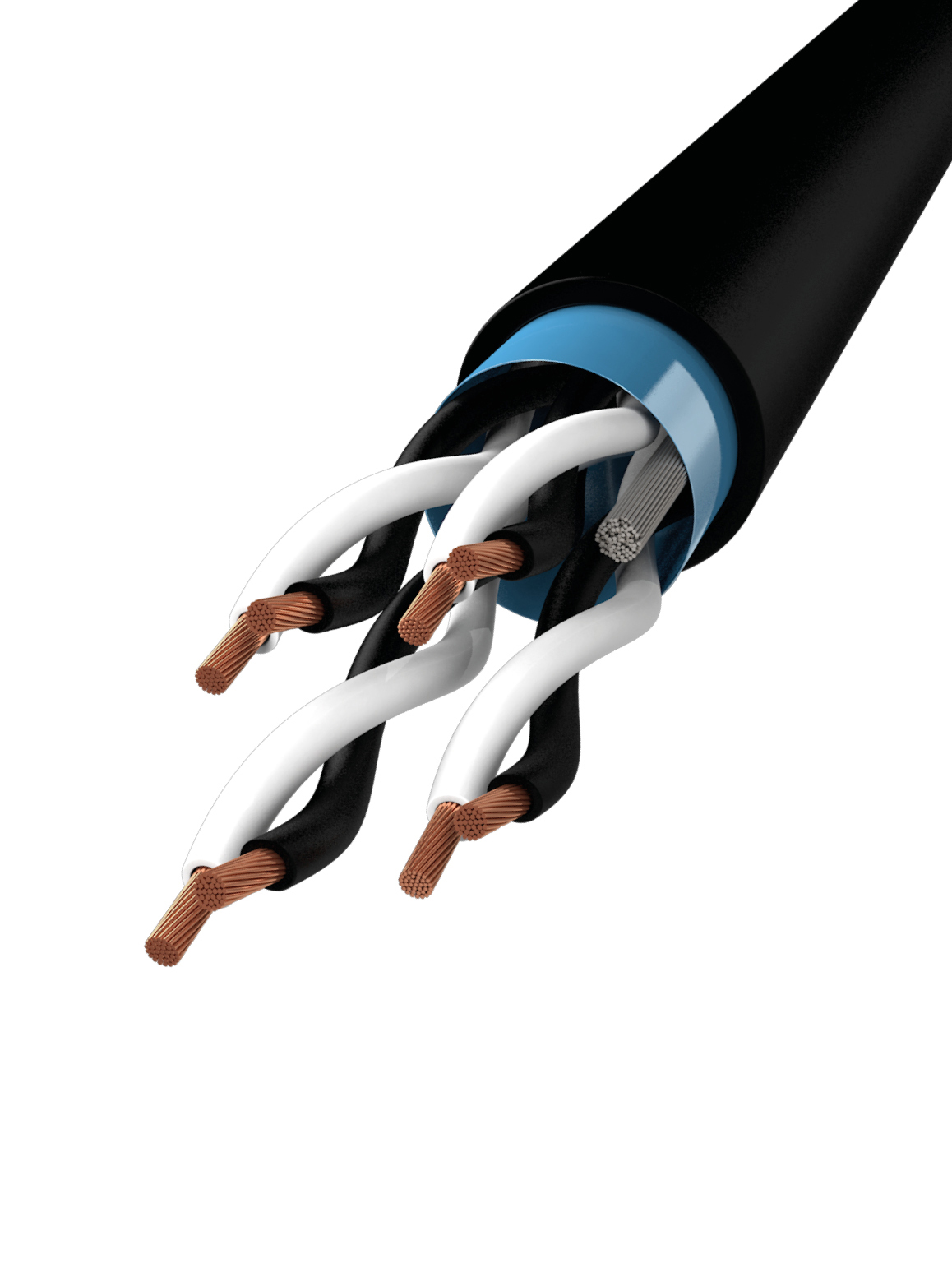

RD-Y(st)Y joint screen - 300 V

Application

RD-Y(st)Y data transmission cables are used in industrial and power plants. The cable is used to transmit analog and digital signals up to frequencies of approx. 10 kHz. Suitable for permanent inside installation.

Construction

Conductor

Cu threads, class 2

Insulation

PVC

Conductor color
1. pair:  blue and red
2. pair:  grey and yellow
3. pair:  green and brown
4. pair:  white and black
Screen

Electrostatic screen of plasticlaminated aluminiumfoil (AL-PES)

Outer sheath

PVC, grey RAL 7000 or blue RAL 5015
Cables with blue outer sheath are used for intrinsically safe installation

Drainwire

Tinned Cu

Technical data

Working temperature
Flexible: -5° C to +50° C
Fixed: -30° C to +70° C
Rated voltage

300 V

Test voltage

1000 V

Bend radius

7.5 x cable diameter

Approvals

IEC 60332-1, IEC 60332-3, CE, RoHS
Bending radius 7,5 x cable diameter
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Max. working temp. +70° C
SKU EAN Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
377005002 - 2x2x0,5 - D./Cut 6,0 55
377005004 - 4x2x0,5 - D./Cut 8,0 91
377005008 - 8x2x0,5 - D./Cut 11,5 158
377005012 - 12x2x0,5 - D./Cut 12,0 210
377005016 - 16x2x0,5 - D./Cut 13,7 280
377005020 - 20x2x0,5 - D./Cut 15,0 340
377005024 - 24x2x0,5 - D./Cut 16,3 390
377005048 - 48x2x0,5 - T.D. 24 770
377010002 - 2x2x1 - D./Cut 7,6 120
377010004 - 4x2x1 - D./Cut 10,4 180
377010008 - 8x2x1 - D./Cut 15,2 310
377010016 - 16x2x1 - D./Cut 18,2 560
* The values can have small deviations
