SCANFLEX ® YSY 1010 - 300/500 V
Application
SCANFLEX® YSY 1010 is used where a flexible armoured cable connection is needed, for instance control equipment in machinery and production. The cable is mechanically protected and UV resistant.

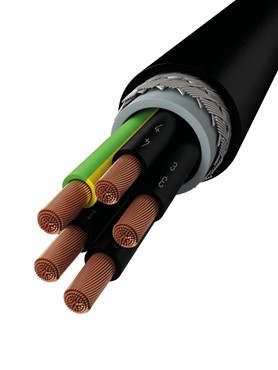

Construction
Conductor
Bare Cu-thread, class 5
Insulation
PVC
Conductor color
Black with white numbering
Yellow/green protective conductor.
From 25 mm2 coloured according to VDE 0293
Filling sheath
PVC
Screen
Galvanized steelwire braid
Outer sheath
PVC, black
Technical data
Working temperature
| Flexible: | -5° C to +70° C |
| Fixed: | -40° C to +80° C |
Rated voltage
300/500 V
Test voltage
2000 V
Bend radius
20 x cable diameter
Approvals
IEC 60332-1, IEC 60228, CE, RoHS
Bending radius 20 x cable diameter
Can lay in tubes
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
For use in switchboards
Low voltage cable
Max. working temp. +80° C
Meter marked
Min. working temperature -40° C
Rodent protected
UV-resistant
Water resistant
Withstands moisture
| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 123007503S | 5704403152322 | 3G0,75 | 9 | D./Cut | 8,3 | 130 | |
| 123007504S | 5704403098101 | 4G0,75 | 9 | D./Cut | 8,8 | 150 | |
| 123007505S | 5704403159215 | 5G0,75 | 9 | D./Cut | 9,5 | 210 | |
| 123007507S | 5704403097746 | 7G0,75 | 9 | D./Cut | 10,3 | 240 | |
| 123007512S | 5704403098118 | 12G0,75 | 9 | D./Cut | 12,9 | 355 | |
| 123007518S | 5704403186471 | 18G0,75 | 9 | D./Cut | 14,9 | 430 | |
| 123007525S | 5704403186488 | 25G0,75 | 9 | D./Cut | 17,2 | 550 | |
| 123015003S | 5704403085231 | 3G1,5 | 15 | D./Cut | 9,6 | 210 | |
| 123015004S | 5704403085255 | 4G1,5 | 15 | D./Cut | 10,2 | 230 | |
| 123015005S | 5704403085316 | 5G1,5 | 15 | D./Cut | 11,1 | 255 | |
| 123015007S | 5704403085293 | 7G1,5 | 15 | D./Cut | 11,8 | 325 | |
| 123015012S | 5704403085309 | 12G1,5 | 15 | D./Cut | 15,2 | 480 | |
| 123015018S | 5704403121922 | 18G1,5 | 15 | D./Cut | 17,6 | 660 | |
| 123015025S | 5704403094400 | 25G1,5 | 15 | D./Cut | 20,8 | 730 | |
| 123025003S | 5704403093250 | 3G2,5 | 20 | D./Cut | 11,1 | 280 | |
| 123025004S | 5704403085262 | 4G2,5 | 20 | D./Cut | 11,8 | 330 | |
| 123060004S | 5704403085279 | 4G6 | 33 | D./Cut | 16,0 | 520 | |
| 123100004S | 5704403085286 | 4G10 | 45 | D./Cut | 19,7 | 950 | |
| * The values can have small deviations | |||||||
